Requires watch cell (NOT included)
Requires watch hand (NOT included)

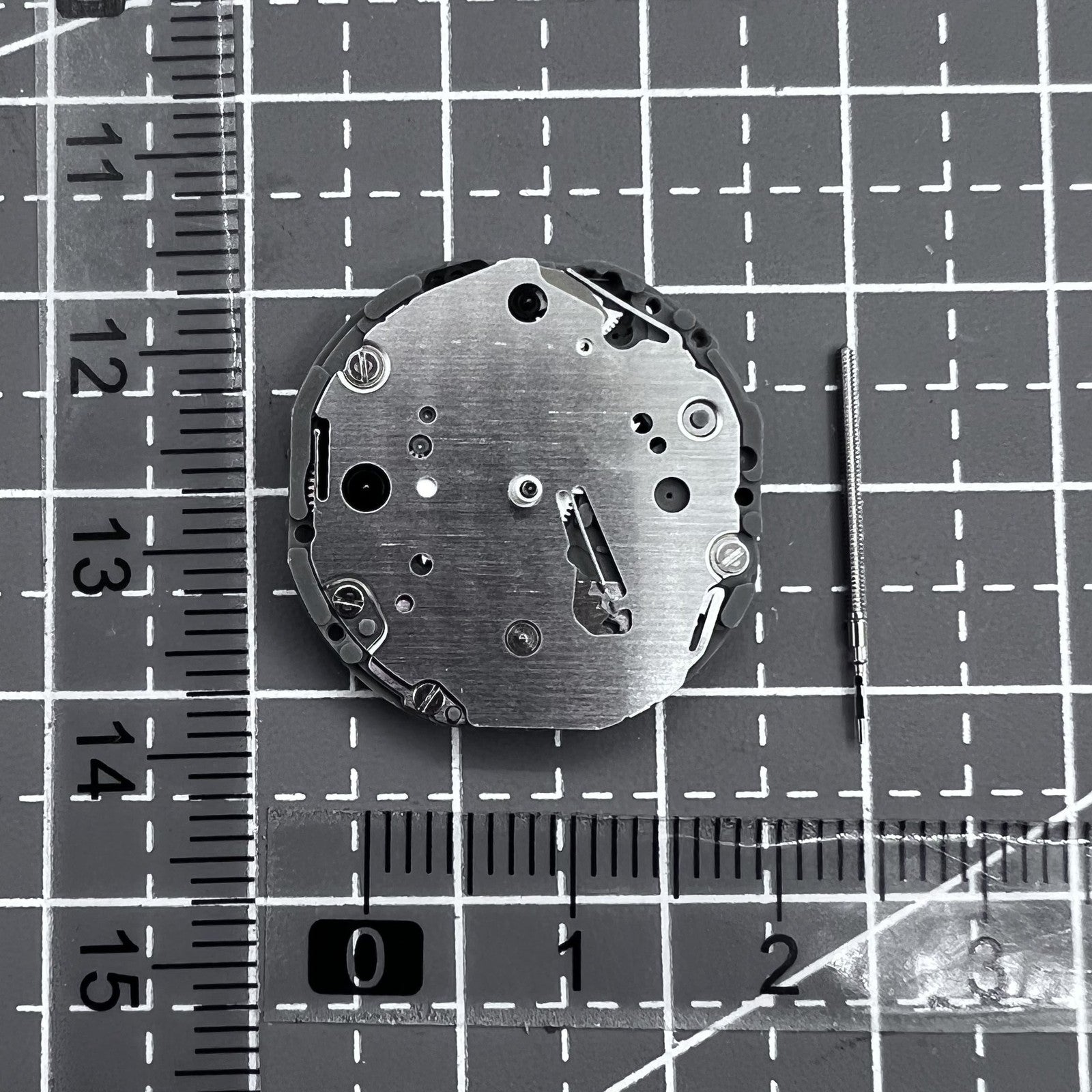

The size is shown on the listing picture.
All dimensions are manually measured with a 5% data deviation.
Features
VD85A / VD85
Sold individually

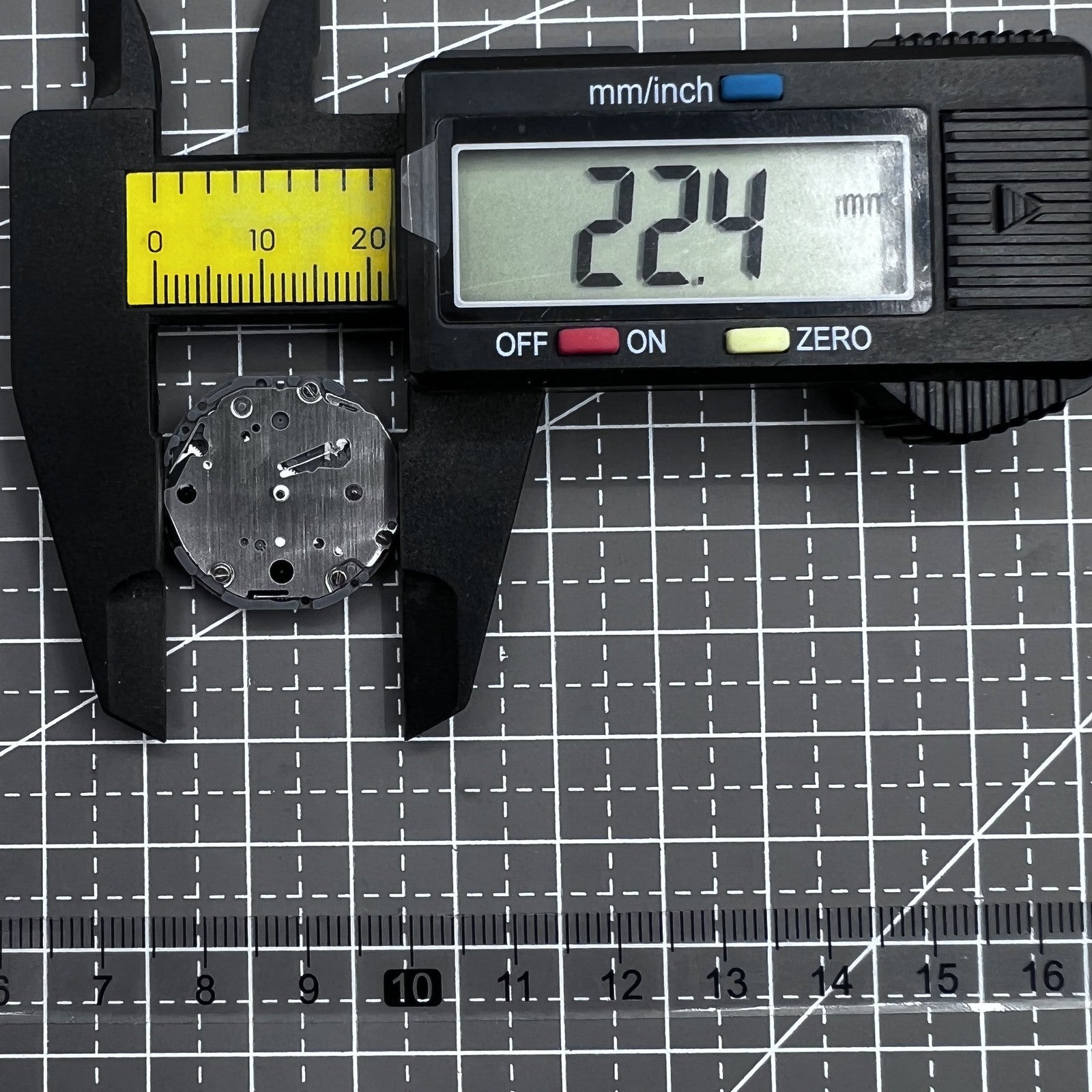

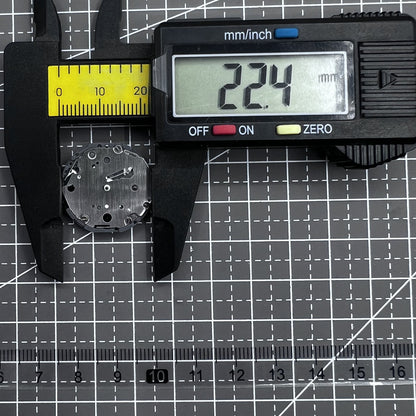

Outside Diameter: 10 1/2 Ligne or 23.3 mm

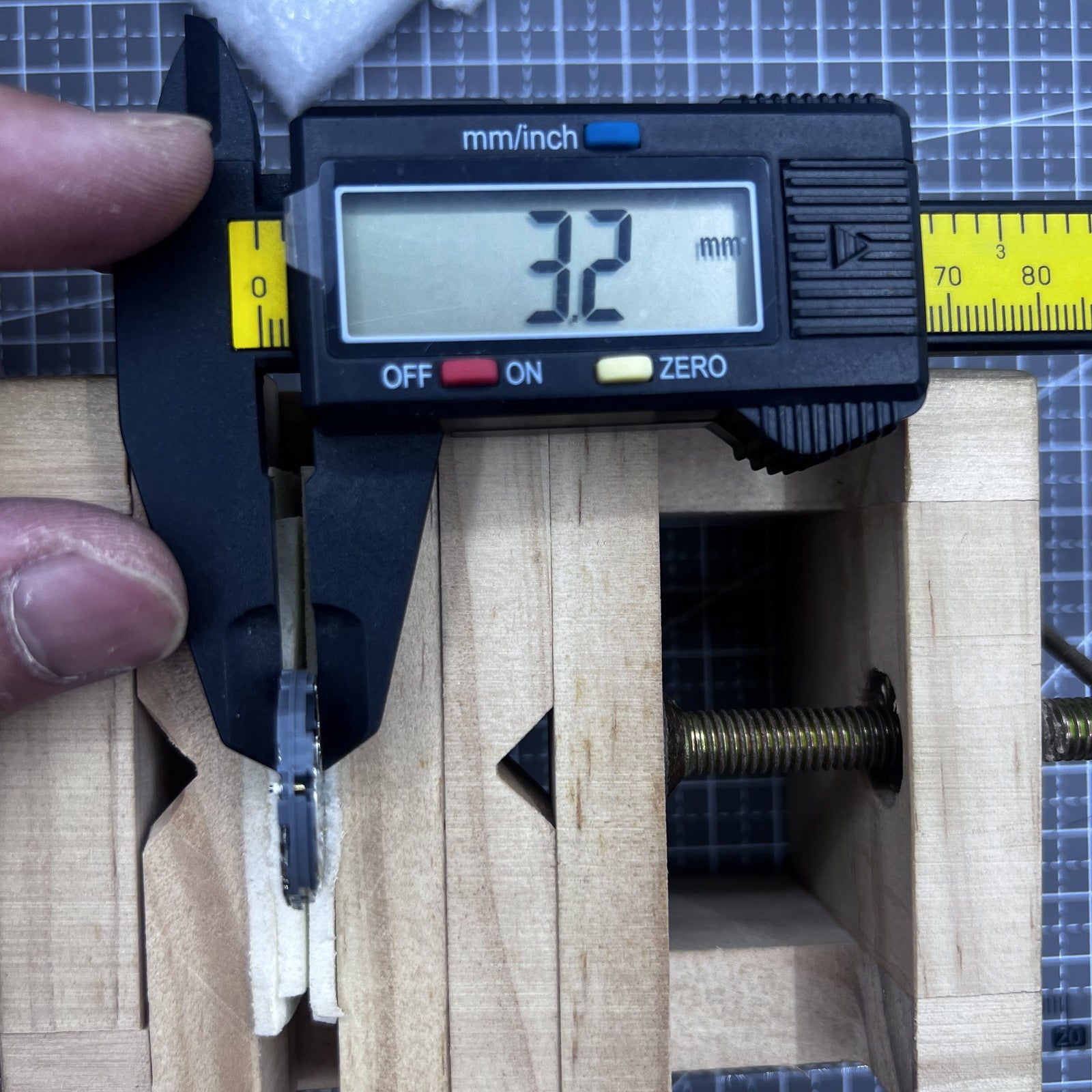

Movement 3.45 mm thick

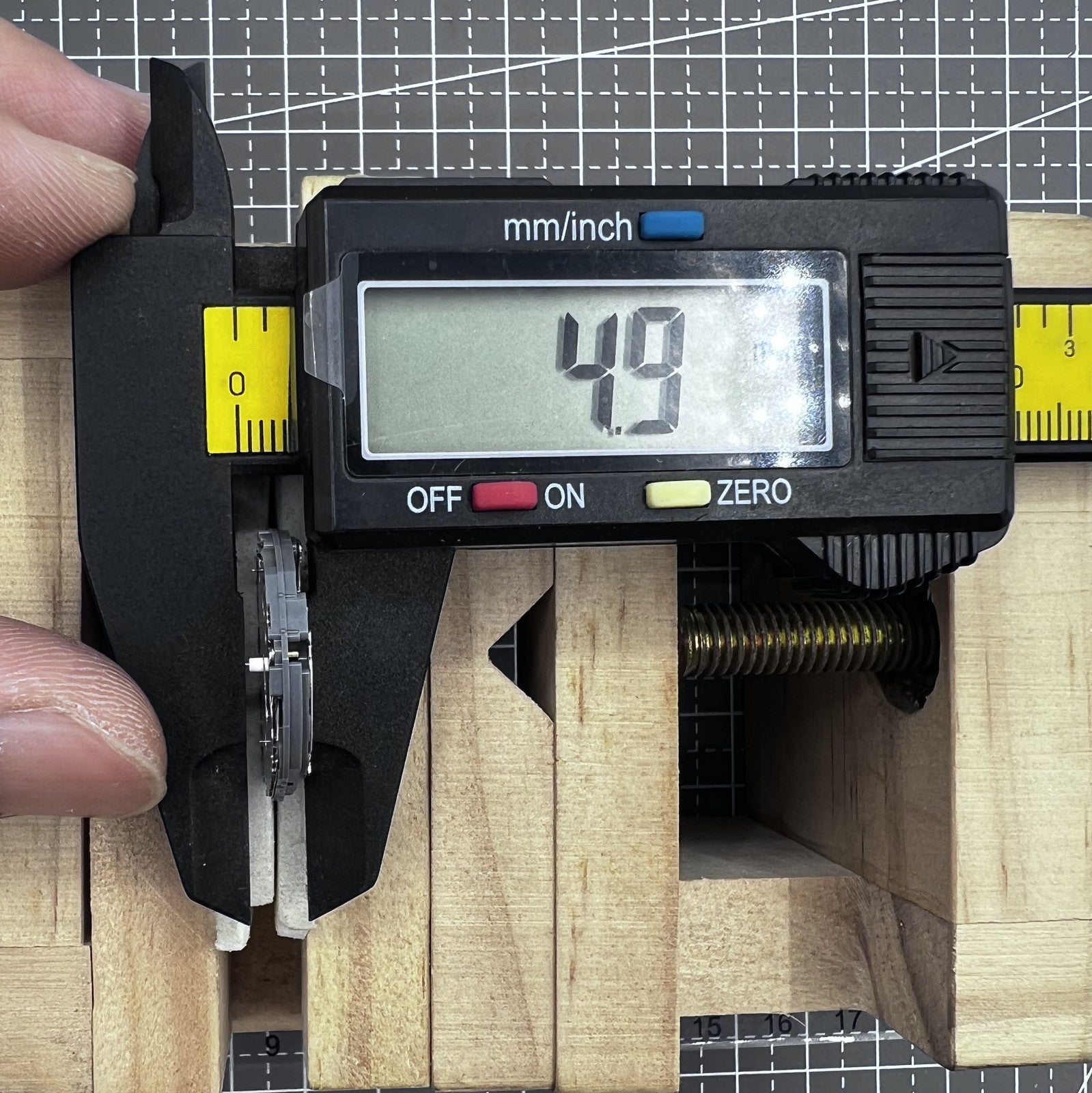

The height from the bottom of the watch movement to the top of the minute pinion is 5.0mm
Date pinion at 3:00
Distance from center post to date pinion is approximately 7.0mm
Small second pinion at 6:00
Distance from center post to small second pinion is approximately 7.5mm
Day pinion at 9:00
Distance from center post to day pinion is approximately 9.0mm
Requires watch cell 377 (NOT included)
Requires watch hands: hour 1.20, minute .70, and small seconds .20 mm (NOT included)

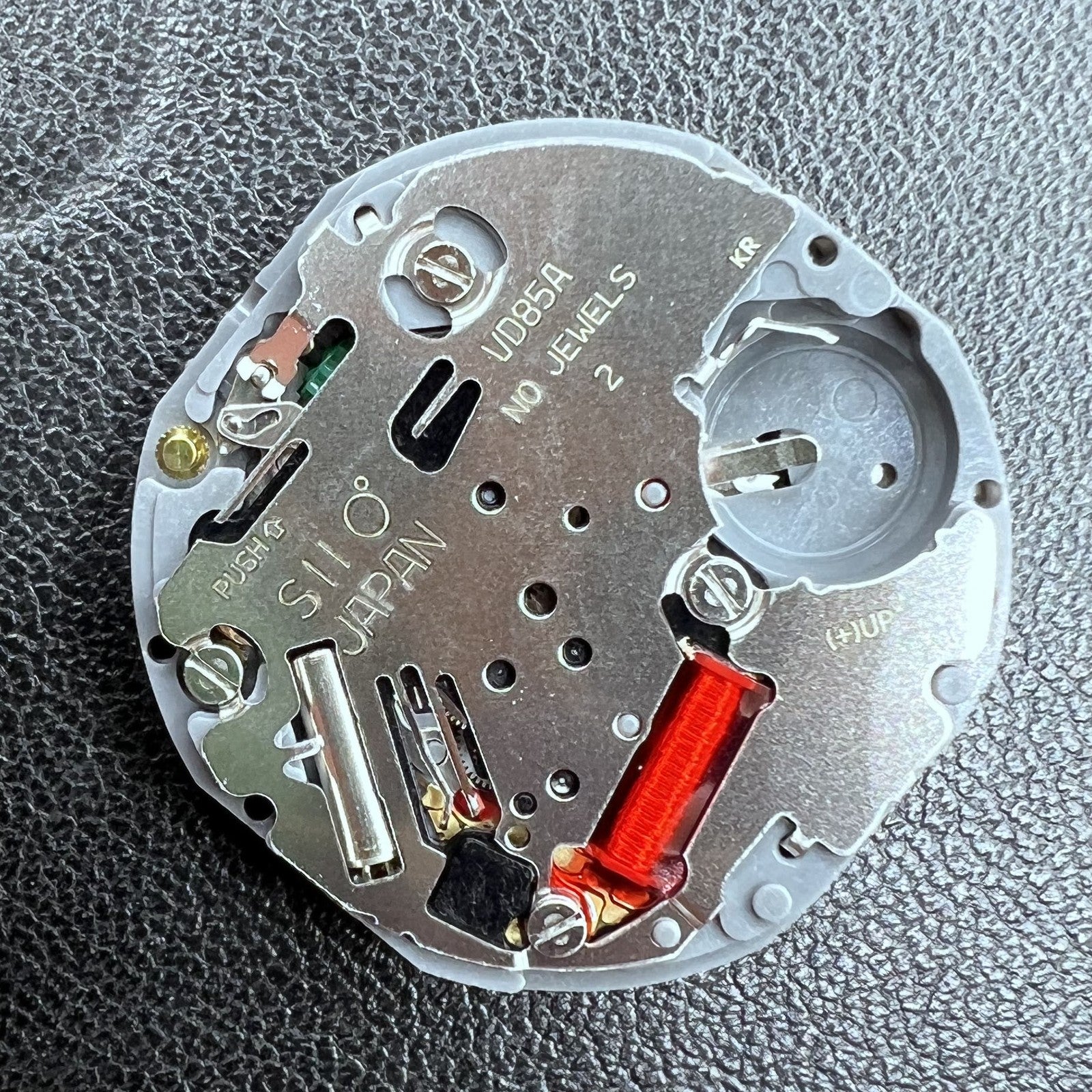

Has NO jewels
Hattori Japan quartz movement
Japanese assembled
